Ashraf Nickel Alloys stands out as a top manufacturer and supplier of Niobium Sheets and Plates in Riyadh, Saudi Arabia. We pride ourselves on providing high-quality materials tailored for advanced engineering and industrial needs. Our Niobium sheets and plates are celebrated for their remarkable corrosion resistance, ductility, and impressive melting point, making them perfect for industries like chemical, aerospace, electronics, and medical. Crafted to meet ASTM, ASME, and international standards, these products come in various thicknesses, finishes, and custom sizes. With a strong focus on quality, precision, and timely delivery, Ashraf Nickel Alloys guarantees that clients receive top-notch niobium products for their essential projects.
Our Niobium Sheets and Plates are made from 99.9% pure niobium, with small amounts of tantalum, titanium, and tungsten to boost performance. They have a density of 8.57 g/cm³ and a melting point of 2,468°C, making them perfect for high-temperature uses. These sheets and plates offer a tensile strength ranging from 275 to 400 MPa, along with excellent ductility, formability, and thermal stability. Niobium’s low thermal neutron absorption cross-section makes it a great fit for nuclear applications, while its outstanding corrosion resistance ensures durability in acidic and chemical environments, even under high temperatures.
| Grade : | Nb1,NbZr,R04200 |
| Standard : | ASTM B393-05 |
| Purity : | 99.95% |

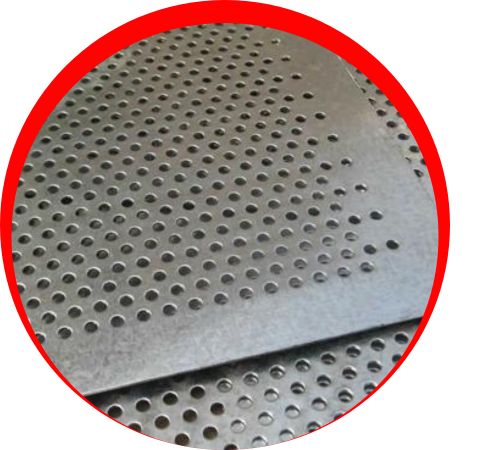

| Specialize sheets : | Shim, Perforated Sheet, B. Q. Profile. |
| Size: | Thick 0.1mm min.W680mm max. L3000mm max |

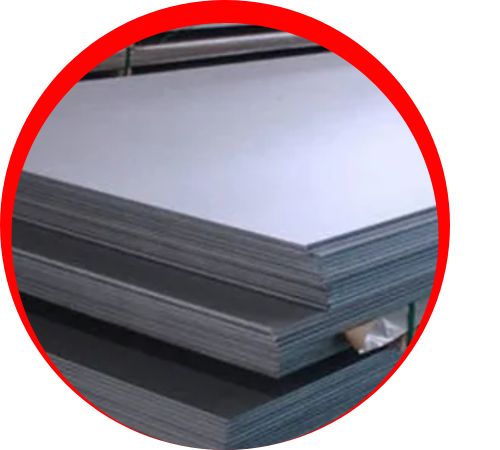

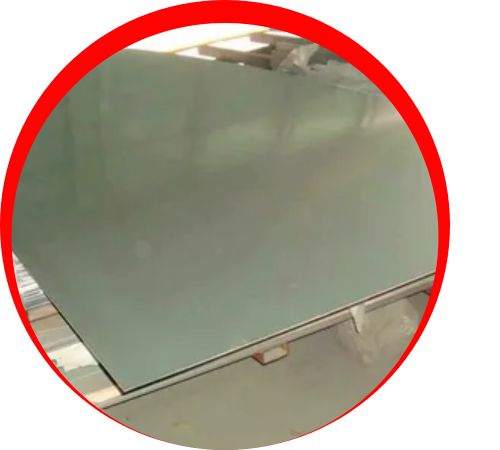

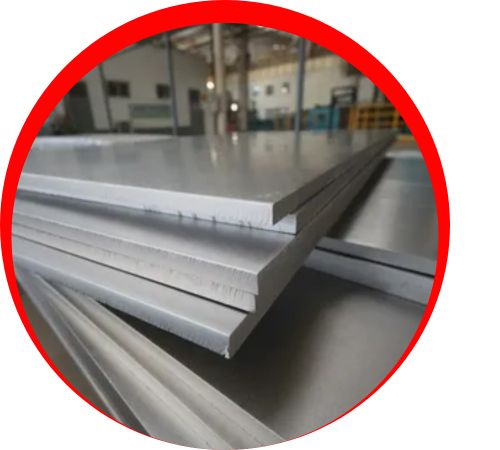

| Finish : | Cold rolled sheet (CR), 2D, Hot rolled plate (HR), 2B, BA NO(8), SATIN (Met with Plastic Coated) |
| Hardness : | Quarter Hard, Soft, Hard, Half Hard, Spring Hard etc. |
| Applications : | Semiconductor materials, vacuum coating, sintering trays and boats, special chemical applications. |
| STANDARD | UNS | Material No |
| Niobium | R04200 | – |
| Element | Type 1 (Reactor Grade Unalloyed Nb) R04200 | Type 2 (Commercial Grade Unalloyed Nb) R04210 | Type 3 (Reactor Grade Nb-1%Nb) R04251 | Type 4 (Commercial Grade Nb-1%Nb) R04261 |
| Max Weight % (Except Where Otherwise Specified) | ||||
| C | 0.01 | 0.01 | 0.01 | 0.01 |
| N | 0.01 | 0.01 | 0.01 | 0.01 |
| O | 0.015 | 0.025 | 0.015 | 0.025 |
| H | 0.0015 | 0.0015 | 0.0015 | 0.0015 |
| Zr | 0.02 | 0.02 | 0.8 – 1.2 | 0.8 – 1.2 |
| Ta | 0.1 | 0.3 | 0.1 | 0.5 |
| Fe | 0.005 | 0.01 | 0.005 | 0.01 |
| Si | 0.005 | 0.005 | 0.005 | 0.005 |
| W | 0.03 | 0.05 | 0.03 | 0.05 |
| Ni | 0.005 | 0.005 | 0.005 | 0.005 |
| Mo | 0.010 | 0.020 | 0.010 | 0.050 |
| Hf | 0.02 | 0.02 | 0.02 | 0.02 |
| Ti | 0.02 | 0.03 | 0.02 | 0.03 |
| Grade Chart | Tensile Ultimate Strength, Minimum,psi(MPa) | Yield Strength Minimum, psi (MPa) | Elongation in 1-inch | |
| 0.010 inch or Greater | Less Than 0.010 inch | |||
| Types 1 and 2 | 18 000 (125) | 10 500 (73) | 20 | 15 |
| Types 3 and 4 | 28 000 (195) | 18 000 (125) | 20 | 15 |
At Ashraf Nickel Alloys, we take pride in being the largest supplier, exporter, and manufacturer of Niobium Sheet and Plates in Riyadh, Saudi Arabia, providing cutting-edge solutions for all your piping needs. Our state-of-the-art production plants are strategically located in the Saudi Arabia, allowing us to maintain a vast inventory of over 16,000 tons of premium-quality materials readily available in stock. We are dedicated to delivering superior products and services, ensuring reliability and excellence for our global clientele.
Contact us to get a quick quote for your requirement.
Niobium Sheets and Plates find their place in a variety of fields, including superconducting technology, chemical processing, aerospace engineering, and electronics manufacturing. Their ability to resist corrosive chemicals and oxidation makes them ideal for heat exchangers, chemical tanks, and reactor vessels. In the medical field, niobium is utilized for implantable devices, pacemakers, and surgical instruments due to its biocompatibility. These sheets and plates are also used in semiconductors, superconducting magnets, particle accelerators, and thin-film coatings. Industries like defense and energy also benefit from the unique properties of niobium, making it a versatile choice for many applications.
