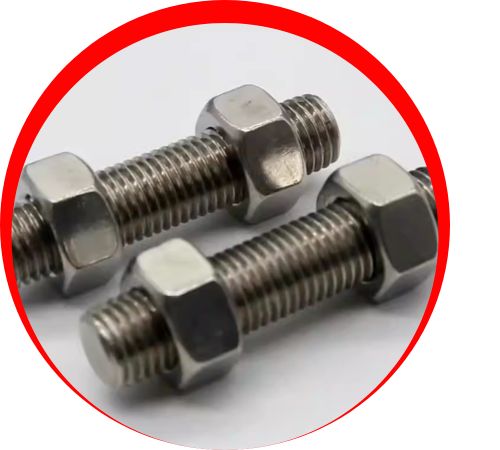

Ashraf Nickel Alloys, located in Riyadh, Saudi Arabia, stands out as a trusted manufacturer and supplier of Inconel 718 Stud Bolts, delivering high-performance fastening solutions tailored for tough environments. These stud bolts are celebrated for their exceptional strength, durability, and resistance to corrosion, making them ideal for critical sectors like aerospace, petrochemical, marine, power generation, and oil & gas. Ashraf Nickel Alloys offers Inconel 718 Stud Bolts in a variety of sizes, dimensions, and specifications to cater to a wide range of industrial needs. With state-of-the-art production facilities and rigorous quality assurance processes, the company guarantees products that meet international standards.
Inconel 718 Stud Bolts are primarily made up of nickel (50–55%), chromium (17–21%), iron, along with notable amounts of niobium, molybdenum, and titanium. This distinctive alloy composition provides remarkable resistance to oxidation, corrosion, and scaling, while also ensuring impressive performance at high temperatures. Mechanically, these stud bolts showcase excellent tensile and yield strength, outstanding fatigue resistance, and toughness, maintaining their stability in both cryogenic and elevated temperature conditions.
| Specification | ASTM F468, B637 / ASME SF468, SB637 |
|---|---|
| Size | M02 to M33, Custom Sizes |
| Length | 3 mm to 200 mm |
| Stud Bolt | UNF, BSW, BSF, METRIC, UNC, or as required |
| Standard | DIN 525, DIN 835, DIN 938, DIN 939, DIN 940, DIN 949-1, DIN 949-2, DIN 975, DIN 976, DIN 2509, BS 2693, BS 3692, BS 4439, IS 1862, IS 13178, ANSI/ASME B18.31.2, ANSI/ASME B16.5 |

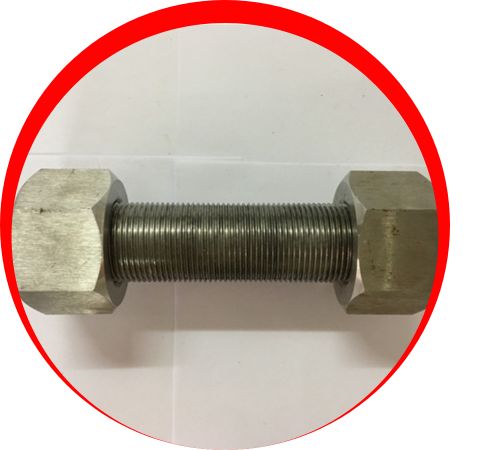

| Form | Hex, Threading, Square, Round as per Gauge Etc. |

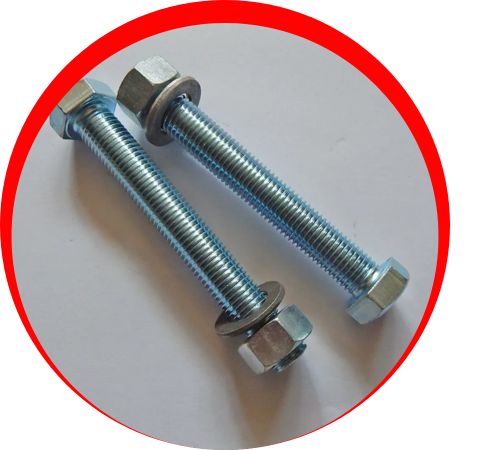

| Threads Configuration | ASME B1.1 2A/3A – 2B/3B Inch Unified Threads and B1.13M 6h-6G Metric Coarse Threads |
| Certification | Dual Certified As per ASTM & ASME Codes |

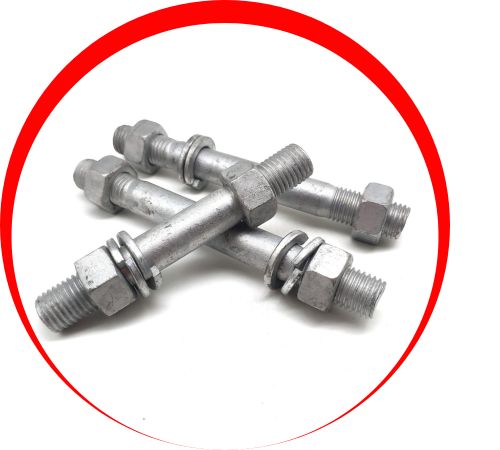

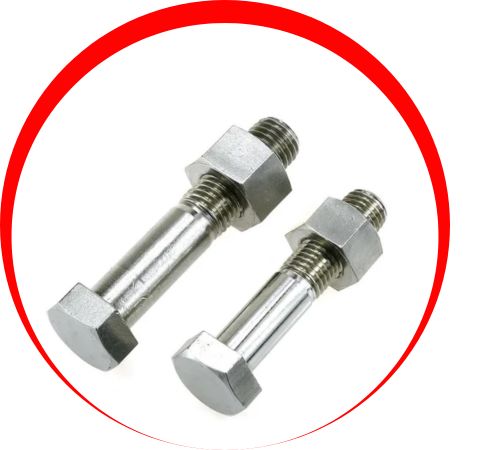

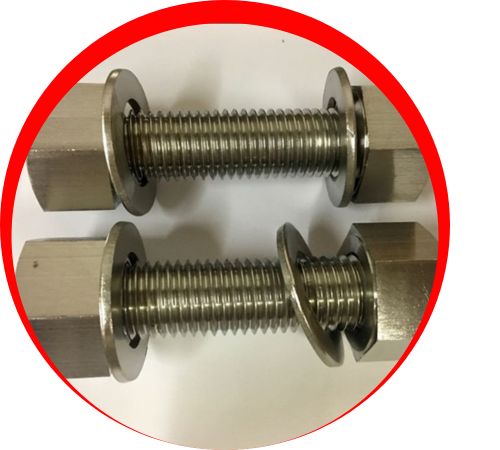

| Types | Stud Bolts, Fully Threaded Stud Bolts, Tap End Stud Bolts, Double End Stud Bolts, Stud Bolts with Reduced Shank, Reduced Shank, Flange Stud Bolts, Flange Bolting, Weld Studs |
| Threads | Unless otherwise specified, the threads shall be rolled or cut and tapped horizontally or vertically |
| Test Certificate | as per EN 10204 / 3.1 Manufacturer Test Certificate |
| Additional Certifications | PED 97/23/EC Certified, Merkblatt AD 2000 W2 Certified |
| Production process | M24-M100: hot forging, M2-M24: Cold Froging, for custom-made connecting element machining and CNC |
| Head drive of Stud Bolts | Six-Lobe, Phillips, Phillips/Slot, Slotted etc |
| Packing of Stud Bolts | IN BULK: canton, pallet, Small Boxs / carton / pallet, or customer request |
| Surface Coating | Ptfe Coated Phosphate Coating Teflon Coating Zinc Coating Hot Dipped Galvanizing Coating Cadmium Coating Xylon Coating |
| Grade | C | Mn | Si | S | Cu | Fe | Ni | Cr |
| Inconel 718 | 0.08 max | 0.35 max | 0.35 max | 0.015 max | 0.30 max | – | 50.00 – 55.00 | 17.00 – 21.00 |
| Element | Density | Melting Point | Tensile Strength | Yield Strength (0.2%Offset) | Elongation |
| Inconel 718 | 8.2 g/cm3 | 1350 °C (2460 °F) | Psi – 1,35,000 , MPa – 930 | Psi – 75,000 , MPa – 482 | 45 % |
At Ashraf Nickel Alloys, we take pride in being the largest supplier, exporter, and manufacturer of Inconel 718 Stud Bolts in Riyadh, Saudi Arabia, providing cutting-edge solutions for all your piping needs. Our state-of-the-art production plants are strategically located in the Saudi Arabia, allowing us to maintain a vast inventory of over 16,000 tons of premium-quality materials readily available in stock. We are dedicated to delivering superior products and services, ensuring reliability and excellence for our global clientele.
Contact us to get a quick quote for your requirement.
Inconel 718 Stud Bolts find extensive use in aerospace engines, gas turbines, chemical processing facilities, marine systems, power plants, and nuclear reactors. They are particularly well-suited for high-pressure, high-temperature, and corrosive environments where standard fasteners might fail. Their ability to endure aggressive chemicals, extreme heat, and mechanical stresses guarantees leak-proof joints and a long service life. These characteristics make Inconel 718 Stud Bolts essential for industries that demand reliable and durable fastening solutions in critical applications.
