Ashraf Nickel Alloys stands out as a top **manufacturer and supplier of Inconel Forged Fittings** in Riyadh, Saudi Arabia. They specialize in crafting high-performance components designed to deliver exceptional strength and corrosion resistance, even in the harshest environments. Inconel, a series of nickel-chromium superalloys, is celebrated for its remarkable ability to resist oxidation, endure high temperatures, and withstand aggressive chemicals. Ashraf Nickel Alloys provides a variety of forged fittings in different Inconel grades, including 600, 625, 718, and X-750, serving vital sectors like petrochemical, aerospace, marine, oil & gas, and power generation across Saudi Arabia and the GCC.

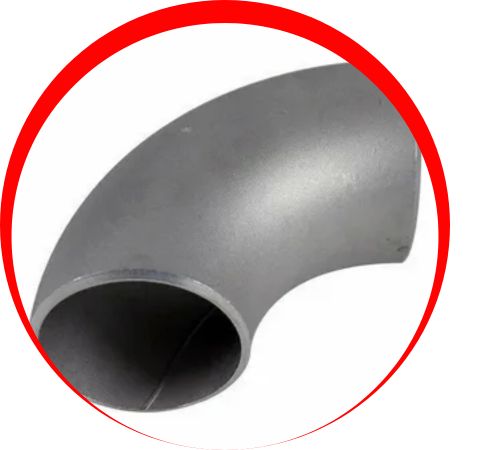

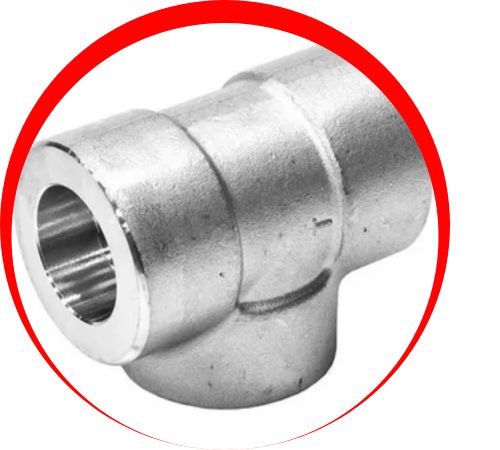

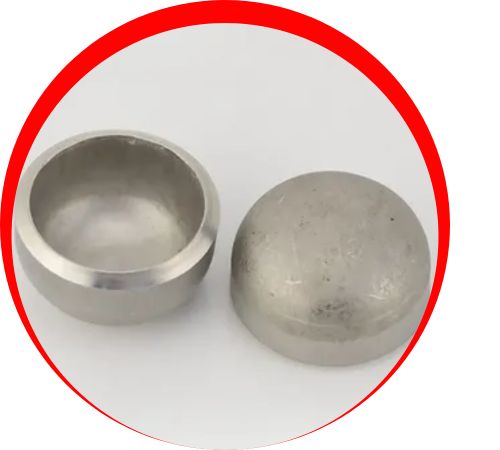

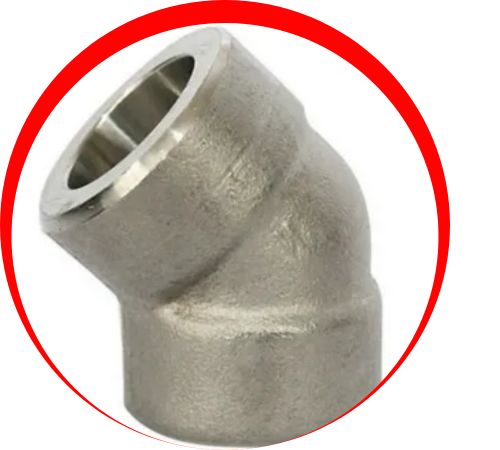

These Inconel Forged Fittings are built to handle high pressure, thermal cycling, and corrosive conditions. They primarily consist of nickel and chromium, with other elements such as molybdenum, iron, niobium, and titanium added based on the specific grade. This composition ensures excellent mechanical strength, resistance to pitting and crevice corrosion, and a long service life even at elevated temperatures. Ashraf Nickel Alloys offers a comprehensive range of forged fittings, including elbows, tees, couplings, unions, bushings, caps, and plugs, available in socket weld and threaded configurations, all adhering to ASME B16.11 and ASTM standards.
| Specifications | ASTM B564 & ASME SB564 |
| Standard | ASME 16.11, MSS SP-79, 83, 95, 97, BS 3799 |
| Size | 1/8” NB to 4” NB (Socketweld & Screwed-Threaded) |
| Grades | Inconel 600, 601, 625, 718, 783, 690, X750 Forged Fittings |
| Type | Socketweld Fittings, Screwed-Threaded Fittings |
| Class | 2000 LBS, 3000 LBS, 6000 LBS, 9000 LBS |
| Grade | Ni | C | Mn | Si | S | Cu | Fe | Cr |
| Inconel 600 | 72.00 min | 0.15 max | 1.00 max | 0.50 max | 0.015max | 0.50 max | 6.00 – 10.00 | 14.00 – 17.00 |
| Inconel 601 | 58.0 – 63.0 | 0.10 max | 1.0 max | 0.5 max | 0.015 max | 1.0 max | Balance | 21.0 – 25.0 |
| Inconel 625 | 58.0 min | 0.10 max | 0.50 max | 0.50 max | 0.015 max | – | 5.0 max | 20.0 – 23.0 |
| Inconel 718 | 50.00 – 55.00 | 0.08 max | 0.35 max | 0.35 max | 0.015 max | 0.30 max | – | 17.00 – 21.00 |
| Element | Density | Melting Point | Tensile Strength | Yield Strength (0.2%Offset) | Elongation |
| Inconel 600 | 8.47 g/cm3 | 1413 °C (2580 °F) | Psi – 95,000 , MPa – 655 | Psi – 45,000 , MPa – 310 | 40 % |
| Inconel 601 | 8.1 g/cm3 | 1411 °C (2571 °F) | Psi – 80,000 , MPa – 550 | Psi – 30,000 , MPa – 205 | 30 % |
| Inconel 625 | 8.4 g/cm3 | 1350 °C (2460 °F) | Psi – 1,35,000 , MPa – 930 | Psi – 75,000 , MPa – 517 | 42.5 % |
| Inconel 718 | 8.2 g/cm3 | 1350 °C (2460 °F) | Psi – 1,35,000 , MPa – 930 | Psi – 75,000 , MPa – 482 | 45 % |
Inconel Forged Fittings from Ashraf Nickel Alloys are extensively utilized in Riyadh’s chemical processing facilities, offshore drilling rigs, heat exchangers, nuclear systems, and high-pressure steam lines. Their durability and precision make them perfect for creating secure, leak-proof piping connections in critical applications. With a commitment to quality, customization, and prompt delivery, Ashraf Nickel Alloys provides forged fittings in various sizes, pressure ratings (Class 2000, 3000, 6000, and 9000), and surface finishes, ensuring dependable performance in Saudi Arabia’s most demanding industrial settings.
Contact us to get a quick quote for your requirement.
Inconel forged fittings are widely used in high-temperature and high-pressure environments due to their exceptional strength, corrosion resistance, and oxidation resistance. Common applications include aerospace components, chemical processing, power generation, and marine engineering. These fittings are ideal for gas turbines, reactors, and heat exchangers, where they withstand extreme conditions and aggressive chemicals. Their durability and performance make them suitable for applications requiring reliable and long-lasting solutions in demanding environments.
