Ashraf Nickel Alloys, located in Riyadh, Saudi Arabia, has earned a solid reputation as a reliable manufacturer and supplier of **Inconel 617 Forged Fittings**. These high-quality components are designed for industries that operate in extreme temperatures and corrosive environments. Crafted for durability, mechanical strength, and resistance to oxidation, carburization, and stress-corrosion cracking, these forged fittings come in a variety of shapes, sizes, and pressure ratings. They are produced to meet international standards, ensuring precise dimensions, dependable performance, and a long service life in critical industrial applications.
The primary materials in **Inconel 617 Forged Fittings** include nickel, chromium, and cobalt, with carefully controlled amounts of molybdenum and iron. This unique composition grants them exceptional high-temperature strength, corrosion resistance, and stability during thermal cycling. On the mechanical side, these fittings boast impressive tensile strength, toughness, and creep resistance, making them perfect for high-pressure and high-temperature processes.
| Standards | ASTM B564/ ASME SB564 |
| Dimensions | ASME 16.11, MSS SP-79, 83, 95, 97, BS 3799 |
| Size | 1/8” NB to 4” NB (Socketweld & Screwed-Threaded) |
| Class | 2000 LBS, 3000 LBS, 6000 LBS, 9000 LBS |
| Type | Socketweld Fittings, Screwed-Threaded Fittings |
| Forged Fittings Thread | NPT, BSPT, BSPP |
| Forged Fittings Test Certificates |
|

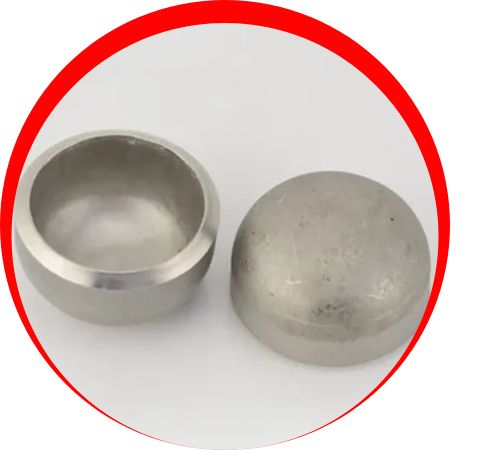

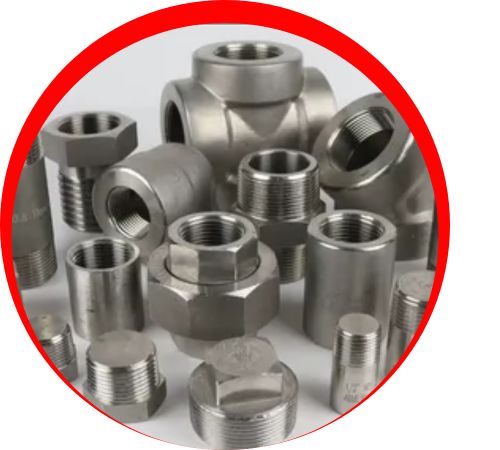

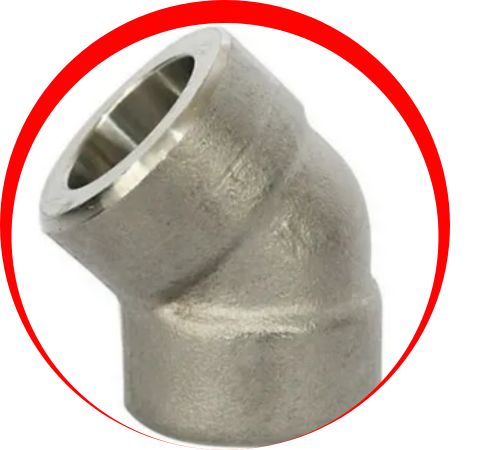

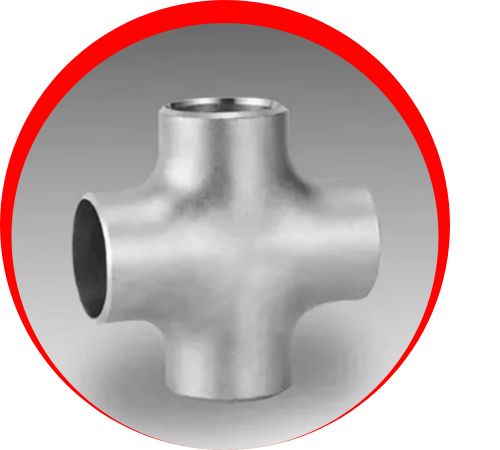

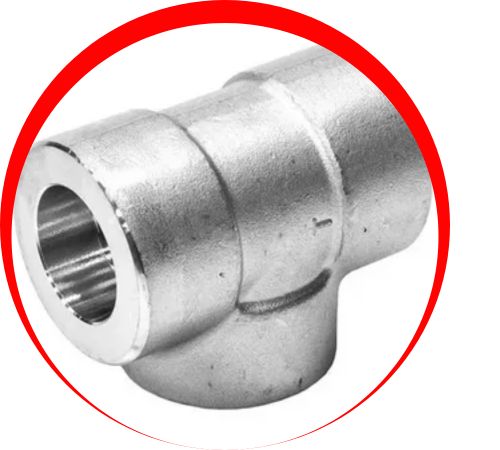

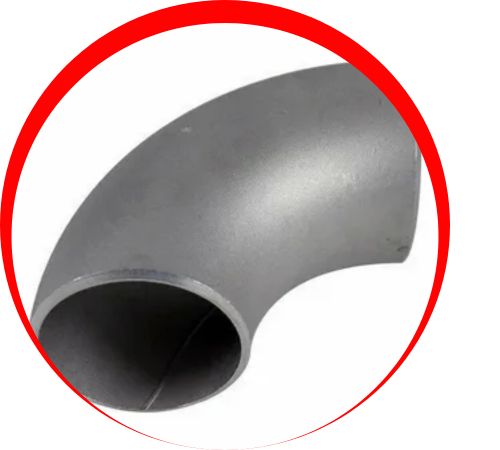

| Specialized manufacturer of | 90º Elbows, 45º Elbows, Tees, Cross, Couplings, Reducers, Inserts, Caps, Nipples, and Unions, Forged Pipe Fittings, Socket Weld & Threaded, Equal Tees & Reducing Tees, 90° & 45° Elbows, Plugs |
| C | Mn | S | Si | Cr | Mo | Ni | Cu | Ti | Al | B | Co | Fe |
| 0.05-0.15 | 1.0 Max | 0.015 Max | 1.0 Max | 20.0-24.0 | 8.0-10.0 | 44.5 Min | 0.5 Max | 0.6 Max | 0.8-1.5 | 0.006 Max | 10.0-15.0 | 3.0 Max |
| Density | Melting Point | Tensile Strength | Yield Strength (0.2%Offset) | Elongation |
| 8.1 g/cm3 | 1411 °C (2571 °F) | Psi – 80,000 , MPa – 550 | Psi – 30,000 , MPa – 205 | 30 % |
At Ashraf Nickel Alloys, we take pride in being the largest supplier, exporter, and manufacturer of Inconel 617 Forged Fittings in Riyadh, Saudi Arabia, providing cutting-edge solutions for all your piping needs. Our state-of-the-art production plants are strategically located in the Saudi Arabia, allowing us to maintain a vast inventory of over 16,000 tons of premium-quality materials readily available in stock. We are dedicated to delivering superior products and services, ensuring reliability and excellence for our global clientele.
Contact us to get a quick quote for your requirement.
You’ll find these forged fittings in a range of industries, including **power generation, petrochemical, chemical processing, aerospace, and furnace sectors**. They are commonly used in applications like boilers, heat exchangers, reactors, piping systems, and superheaters, where resistance to scaling, thermal fatigue, and aggressive media is essential. **Inconel 617 Forged Fittings** deliver reliable, durable, and safe solutions for industries that demand high-performance and corrosion-resistant components in challenging environments.
