Ashraf Nickel Alloys stands out as a premier manufacturer and supplier of Inconel 800H Bars in Riyadh, Saudi Arabia. We pride ourselves on delivering top-notch products that excel in high-temperature and corrosive environments. Inconel 800H is a refined version of Inconel 800, crafted with carefully controlled carbon levels and improved creep and stress rupture strength, making it perfect for enduring extreme heat. Renowned for its exceptional resistance to oxidation and carburization, this alloy finds its place in industries like petrochemical processing, thermal power generation, and industrial furnace construction. At Ashraf Nickel Alloys, we focus on precision engineering, rigorous quality control, and tailored specifications to meet global industry standards.
Inconel 800H is made up of 30–35% nickel, 19–23% chromium, and a balanced amount of iron, along with enhanced carbon (0.05–0.10%) and stabilizing elements like titanium and aluminum to boost high-temperature strength. It boasts a tensile strength ranging from 550–750 MPa, excellent creep rupture strength, and impressive resistance to oxidation, carburization, and stress corrosion cracking. With a melting range of 1350–1385°C, it maintains its structural integrity even under extreme conditions. Inconel 800H also offers great ductility, machinability, and weldability, making it a top choice for heavy-duty industrial applications where high temperatures and corrosive environments are a constant challenge.
| Standards : | ASTM B408, ASME SB408 |
| Dimensions : | EN, DIN, JIS, ASTM, BS, ASME, AISI |
| Wire : | Thickness starting from 0.05mm |

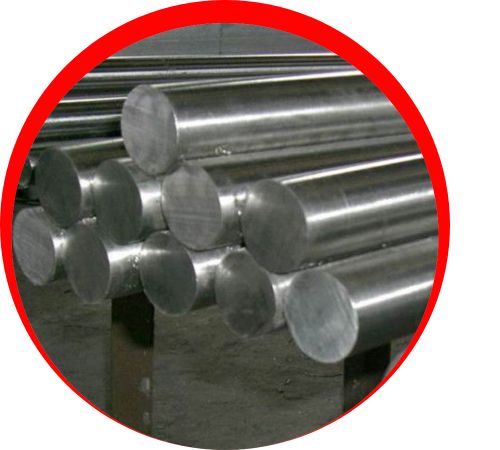

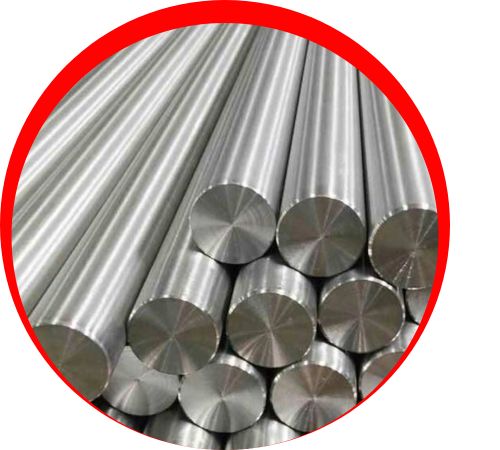

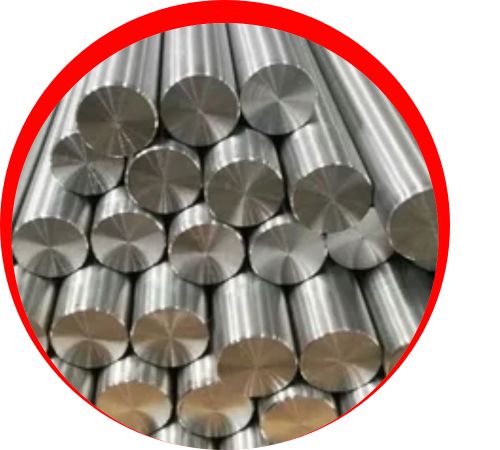

| Round bar size : | Diameter: 3-~800mm |

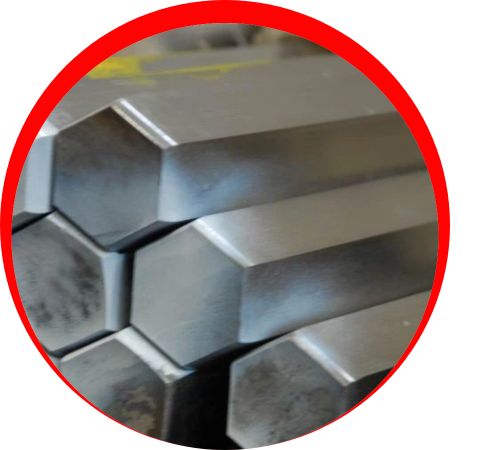

| Hex Bar size : | 2-100mm A/F |

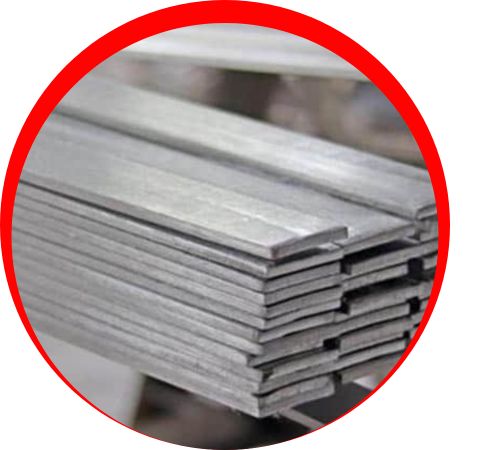

| Flat bar size : | Thickness: 2 -100mm / Width: 10 to 500mm |

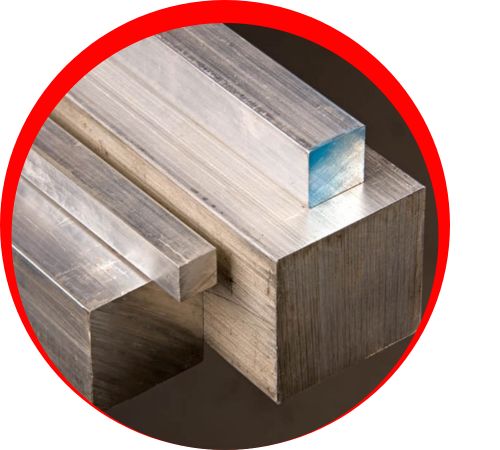

| Square bar size : | 4 to 100mm |
| Rectangular Bars Size : | 33 x 30mm to 295 x 1066mm |
| Hollow Bar : | 32mm OD x 16mm ID to 250mm OD x 200mm ID |
| Tolerance : | H8, H9, H10, H11, H12, H13K9, K10, K11, K12 or as per clients’ requirements |
| Finish : | Black, Bright Polished, Rough Turned, NO.4 Finish, Matt Finish, BA Finish |
| Grade | C | Mn | Si | S | Cu | Fe | Ni | Cr | Al | Ti |
| 800H | 0.05 – 0.10 | 1.50 max | 1.00 max | 0.015 max | 0.75 max | 39.50 min | 30.00 – 35.00 | 19.00 – 23.00 | 0.15 – 0.60 | 0.15 – 0.60 |
| Density | Melting Point | Tensile Strength | Yield Strength (0.2%Offset) | Elongation |
| 7.94 g/cm3 | 1385 °C (2525 °F) | Psi – 75,000 , MPa – 520 | Psi – 30,000 , MPa – 205 | 30 % |
At Ashraf Nickel Alloys, we take pride in being the largest supplier, exporter, and manufacturer of Inconel 800-H Bar in Riyadh, Saudi Arabia, providing cutting-edge solutions for all your piping needs. Our state-of-the-art production plants are strategically located in the Saudi Arabia, allowing us to maintain a vast inventory of over 16,000 tons of premium-quality materials readily available in stock. We are dedicated to delivering superior products and services, ensuring reliability and excellence for our global clientele.
Contact us to get a quick quote for your requirement.
Inconel 800H bars are widely used in petrochemical plants, industrial furnaces, heat exchangers, power generation systems, and steam generators, thanks to their remarkable high-temperature strength. They are particularly suited for hydrocarbon processing, chemical reactors, superheater tubes, exhaust systems, and gas turbines, where resistance to oxidation and carburization is essential. The alloy’s ability to maintain its mechanical properties at elevated temperatures makes it a go-to material for demanding applications, ensuring reliability and performance in environments where heat and corrosive media are part of the daily operation.
