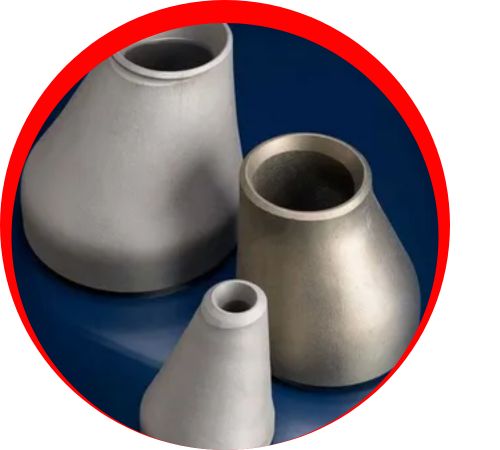

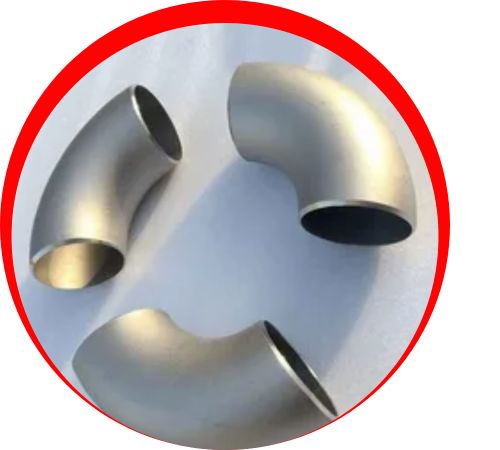

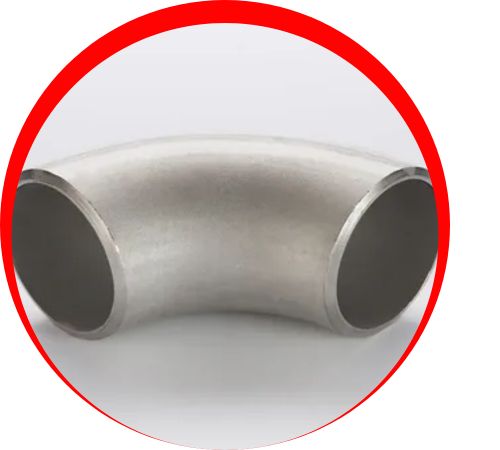

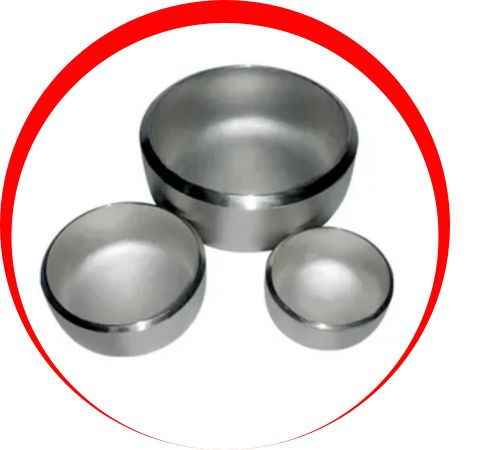

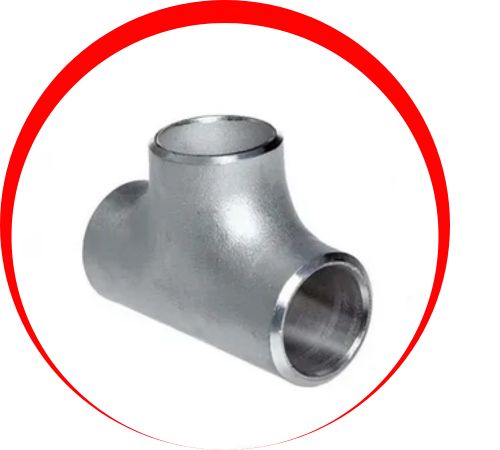

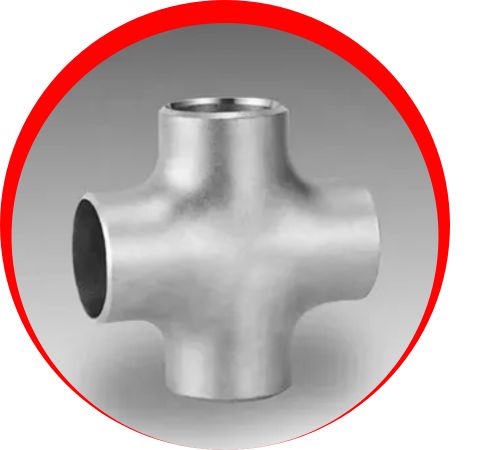

Ashraf Nickel Alloys stands out as a reliable manufacturer and supplier of Inconel 617 Pipe Fittings in Riyadh, Saudi Arabia. We specialize in delivering top-notch solutions for industries that demand exceptional strength and corrosion resistance, especially at high temperatures. These fittings are crafted for critical piping systems and find their place in sectors like aerospace, chemical processing, power generation, and petrochemicals. Our Inconel 617 Pipe Fittings come in various types, including elbows, tees, reducers, caps, and even custom configurations, all designed to ensure leak-proof performance and long-lasting durability in tough conditions.
Made primarily from nickel and chromium, Inconel 617 Pipe Fittings also include important amounts of cobalt and molybdenum, which give them outstanding resistance to oxidation, carburization, and other forms of high-temperature corrosion. On the mechanical side, they boast high tensile and yield strength, excellent creep-rupture resistance, and remarkable metallurgical stability. Their ability to maintain toughness and durability in both oxidizing and reducing environments makes them ideal for complex piping systems that face thermal cycling and extreme conditions.
Specifications ASTM B366 / ASME SB366
Dimensions ASME/ANSI B16.9, ASME B16.28, MSS-SP-43, MSS SP-79
Size 1/8” NB TO 48” NB. (Seamless & 100% X-Ray Welded, Fabricated)
Type Seamless / Welded / Fabricated
Bending Radius R=1D, 2D, 3D, 5D, 6D, 8D, 10D or Custom
Thickness Sch 5s, Sch 10s, Sch 40s, Sch 80s, Sch 160s, Sch XXS
Grade Inconel 617 UNS (N06617), DIN (2.4663)
| C | Mn | S | Si | Cr | Mo | Ni | Cu | Ti | Al | B | Co | Fe |
| 0.05-0.15 | 1.0 Max | 0.015 Max | 1.0 Max | 20.0-24.0 | 8.0-10.0 | 44.5 Min | 0.5 Max | 0.6 Max | 0.8-1.5 | 0.006 Max | 10.0-15.0 | 3.0 Max |
| Density | Melting Point | Tensile Strength | Yield Strength (0.2%Offset) | Elongation |
| 8.1 g/cm3 | 1411 °C (2571 °F) | Psi – 80,000 , MPa – 550 | Psi – 30,000 , MPa – 205 | 30 % |
At Ashraf Nickel Alloys, we take pride in being the largest supplier, exporter, and manufacturer of Inconel 617 Pipe Fittings in Riyadh, Saudi Arabia, providing cutting-edge solutions for all your piping needs. Our state-of-the-art production plants are strategically located in the Saudi Arabia, allowing us to maintain a vast inventory of over 16,000 tons of premium-quality materials readily available in stock. We are dedicated to delivering superior products and services, ensuring reliability and excellence for our global clientele.
Contact us to get a quick quote for your requirement.
These fittings are widely utilized in gas turbines, combustion chambers, and heat-treatment equipment thanks to their impressive high-temperature performance. In the power generation industry, you’ll find them in superheaters, steam piping, and heat exchangers. The chemical and petrochemical sectors depend on these fittings for managing corrosive gases, acids, and furnace applications, while the aerospace industry incorporates them into critical engine and exhaust components. With their exceptional blend of strength, corrosion resistance, and durability, Inconel 617 Pipe Fittings are the go-to choice for mission-critical industrial applications.
