Ashraf Nickel Alloys stands out as a reliable **manufacturer and supplier of Incoloy Forged Fittings** in Riyadh, Saudi Arabia, delivering top-notch solutions for piping systems that need to withstand corrosive and high-temperature conditions. Incoloy, a nickel-iron-chromium alloy, is celebrated for its remarkable resistance to oxidation, carburization, and stress corrosion cracking. At Ashraf Nickel Alloys, we produce forged fittings in popular Incoloy grades like 800, 800H, 800HT, and 825, serving industries such as oil & gas, chemical processing, power generation, and marine sectors throughout Saudi Arabia and the GCC.

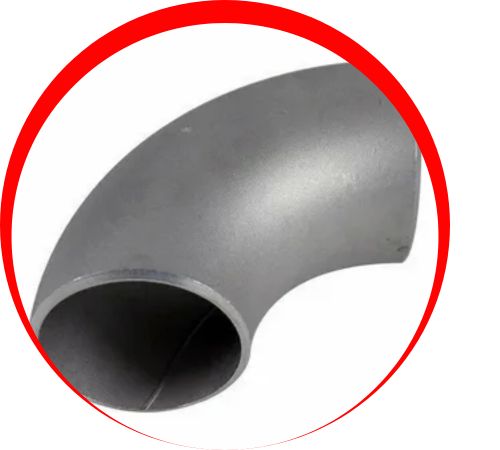

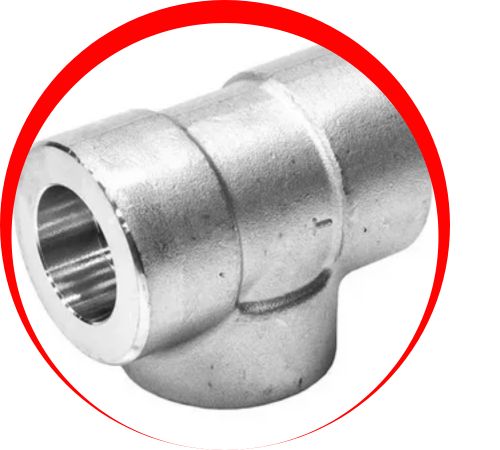

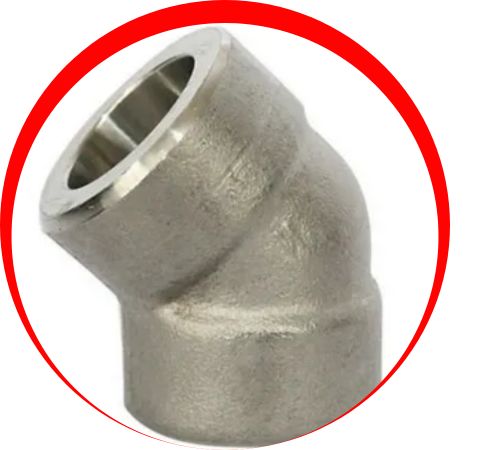

Our Incoloy Forged Fittings are designed to offer outstanding strength, durability, and corrosion resistance, even in the toughest operating environments. Made from a blend of nickel, iron, chromium, and other elements like molybdenum and copper (in grade 825), these fittings perform reliably in both oxidizing and reducing conditions, including those that involve sulfuric and phosphoric acids. We provide a comprehensive range of forged fittings, including elbows, tees, couplings, unions, plugs, and bushings, available in both threaded and socket weld types, all manufactured to meet ASME B16.11 and ASTM standards.
Specifications : ASTM B564 & ASME SB564
Standard : ASME 16.11, MSS SP-79, 83, 95, 97, BS 3799
Size : 1/8” NB to 4” NB (Socketweld & Screwed-Threaded)
Class : 2000 LBS, 3000 LBS, 6000 LBS, 9000 LBS
Type : Socketweld Fittings, Screwed-Threaded Fittings
Grades : Incoloy 800, 800H, 800HT, 825, 925 Forged Fittings
| Element | Density | Melting Point | Tensile Strength | Yield Strength (0.2%Offset) | Elongation |
| Incoloy Forged Fittings | 7.94 g/cm3 | 1385 °C (2525 °F) | Psi – 75,000 , MPa – 520 | Psi – 30,000 , MPa – 205 | 30 % |
| Grade | C | Mn | Si | S | Cu | Fe | Ni | Cr | Al | Ti |
| Incoloy Forged Fittings | 0.10 max | 1.50 max | 1.00 max | 0.015 max | 0.75 max | 39.50 min | 30.00 – 35.00 | 19.00 – 23.00 | 0.15 – 0.60 | 0.15 – 0.60 |
You’ll find Ashraf Nickel Alloys’ Incoloy Forged Fittings widely utilized in Riyadh’s petrochemical plants, offshore platforms, heat exchanger systems, and refineries. Their long service life, impressive mechanical strength, and resistance to thermal fatigue make them perfect for critical applications. With pressure ratings of Class 2000, 3000, 6000, and 9000, these fittings can be customized in size and configuration to meet specific client needs. At Ashraf Nickel Alloys, we prioritize consistent quality, quick delivery, and full compliance with international standards to support Saudi Arabia’s most demanding industrial projects.
Contact us to get a quick quote for your requirement.
Incoloy Forged Fittings are widely used in industries requiring high resistance to heat and corrosion. They are ideal for applications in chemical processing, power generation, and oil and gas industries, where they handle aggressive chemicals, high pressures, and extreme temperatures. These fittings are also used in marine environments, nuclear plants, and aerospace applications due to their durability and strength. Incoloy Forged Fittings ensure reliable connections in piping systems, enhancing the safety and efficiency of critical industrial operations.
