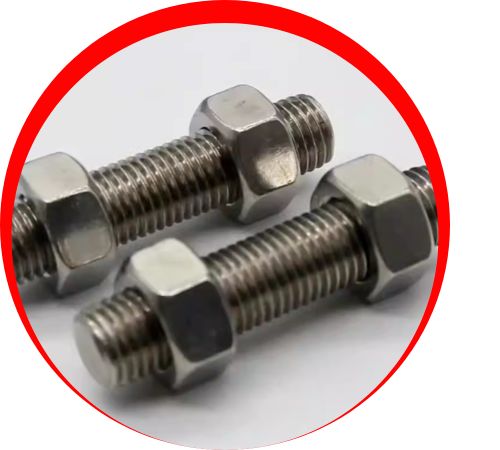

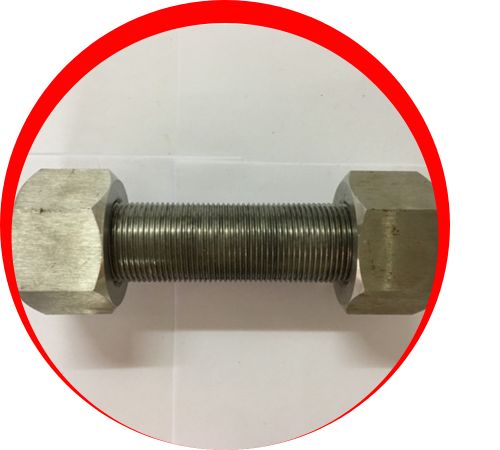

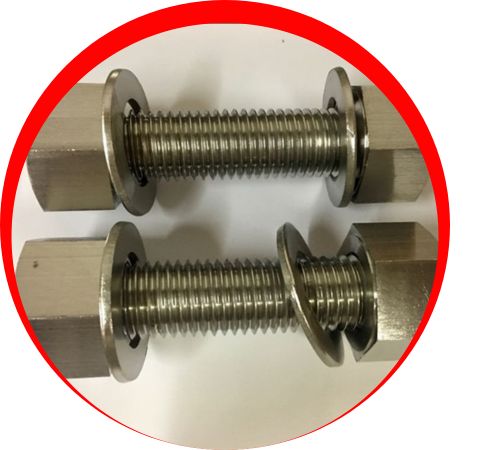

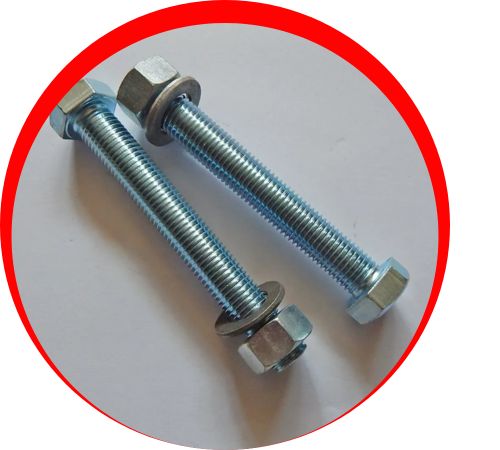

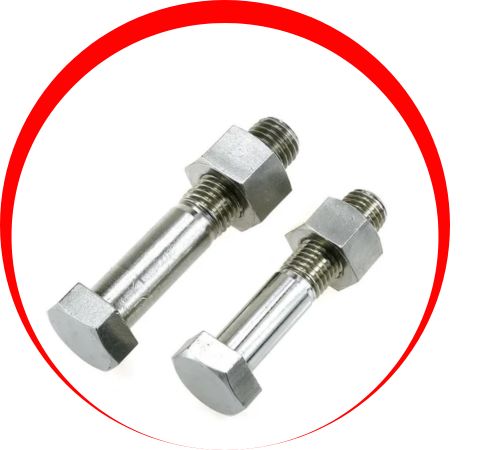

Ashraf Nickel Alloys, located in Riyadh, Saudi Arabia, is a reliable manufacturer and supplier of **Incoloy 800/800H/800HT Stud Bolts**. They provide high-performance fastening solutions designed for industries that operate in extreme temperatures and corrosive environments. These stud bolts are crafted to offer exceptional strength, reliability, and resistance to oxidation, carburization, and stress-corrosion cracking. With a variety of sizes, lengths, and grades available, Incoloy 800 series stud bolts are produced to meet international standards, ensuring precision, durability, and long-lasting performance for critical industrial applications.
The composition of **Incoloy 800/800H/800HT Stud Bolts** primarily includes nickel, iron, and chromium, along with carefully controlled amounts of carbon, aluminum, and titanium. The 800H and 800HT grades have a higher carbon content and optimized Al-Ti levels, which improve creep resistance, tensile strength, and metallurgical stability at high temperatures. Mechanically, these stud bolts demonstrate excellent tensile and yield strength, toughness, and dimensional stability during thermal cycling and high-pressure conditions, making them a dependable choice for fastening in tough operating environments.
| Stud Bolt size | M02 to M33, Custom Sizes |
|---|---|
| Stud Bolts Length | 3 mm to 200 mm |
| Stud Bolt | UNF, BSW, BSF, METRIC, UNC, or as required |
| Standard of Stud Bolts | DIN 525, DIN 835, DIN 938, DIN 939, DIN 940, DIN 949-1, DIN 949-2, DIN 975, DIN 976, DIN 2509, BS 2693, BS 3692, BS 4439, IS 1862, IS 13178, ANSI/ASME B18.31.2, ANSI/ASME B16.5 |
| Form of Stud Bolts | Hex, Threading, Square, Round as per Gauge Etc. |
| Raw materials Source | JSPL, Mukund Steel, Tata Steel, Dhamm Steel, Usha Martin, etc. |
| Threads Configuration | ASME B1.1 2A/3A – 2B/3B Inch Unified Threads and B1.13M 6h-6G Metric Coarse Threads |
| Certification | Dual Certified As per ASTM & ASME Codes |

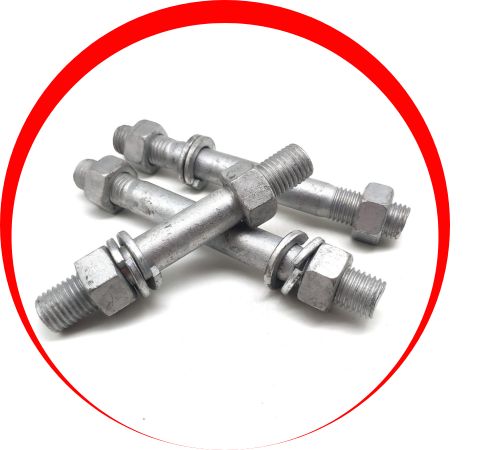

| Popular Types of Stud Bolt | Stud Bolts, Fully Threaded Stud Bolts, Tap End Stud Bolts, Double End Stud Bolts, Stud Bolts with Reduced Shank, Reduced Shank, Flange Stud Bolts, Flange Bolting, Weld Studs |
| Threads | Unless otherwise specified, the threads shall be rolled or cut and tapped horizontally or vertically |
| Test Certificate of Stud Bolts | as per EN 10204 / 3.1 Manufacturer Test Certificate |
| Additional Certifications | PED 97/23/EC Certified, Merkblatt AD 2000 W2 Certified |
| Production process | M24-M100: hot forging, M2-M24: Cold Froging, for custom-made connecting element machining and CNC |
| Head drive of Stud Bolts | Six-Lobe, Phillips, Phillips/Slot, Slotted etc |
| Packing of Stud Bolts | IN BULK: canton, pallet, Small Boxs / carton / pallet, or customer request |
| Surface Coating | Ptfe Coated Stud Bolts Phosphate Coating Teflon Coating Zinc Coating Hot Dipped Galvanizing Coating Cadmium Coating Xylon Coating |
| Stud Bolts finishing | Coatings & Finishes : Self-Colour, Passivated, Bright Zinc Plated (BZP), Hot Dip Galvanised (HDG), Sherardized, some special one like DACROMET Geometry and Mechanically Applied coating ,Dacroment, nickel plated, anodizing, plated zinc-nickel Zinc (blue, black, yellow, white), black oxide, |
| Grade | C | Mn | Si | S | Cr | Fe | Ni |
| Incoloy 800 | 0.1 max | 1.5 max | 1.0 max | 0.015max | 19.0 – 23.0 | 39.5 min | 30.0 – 35.0 |
| Incoloy 800H | 0.05 – 0.1 | 1.5 max | 1.0 max | 0.015 max | 19.0 – 23.0 | 39.5 min | 30.0 – 35.0 |
| Incoloy 800HT | 0.06 – 0.1 | 1.5 max | 1.0 max | 0.015 max | 19.0 – 23.0 | 39.5 min | 30.0 – 35.0 |
| Element | Density | Melting Point | Tensile Strength | Yield Strength (0.2%Offset) | Elongation |
| 800 / 800H / 800HT | 7.94 g/cm3 | 1385 °C (2525 °F) | Psi – 75,000 , MPa – 520 | Psi – 30,000 , MPa – 205 | 30 % |
At Ashraf Nickel Alloys, we take pride in being the largest supplier, exporter, and manufacturer of Incoloy 800/800H/800HT Stud Bolts in Riyadh, Saudi Arabia, providing cutting-edge solutions for all your piping needs. Our state-of-the-art production plants are strategically located in the Saudi Arabia, allowing us to maintain a vast inventory of over 16,000 tons of premium-quality materials readily available in stock. We are dedicated to delivering superior products and services, ensuring reliability and excellence for our global clientele.
Contact us to get a quick quote for your requirement.
These stud bolts find extensive use in the **petrochemical, chemical processing, power generation, oil & gas, furnace, and heat treatment industries**. Common applications include boilers, heat exchangers, turbines, reactors, superheaters, and piping systems, where high-temperature corrosion resistance and mechanical strength are essential. Their capability to endure aggressive chemicals, thermal stress, and heavy mechanical loads makes **Incoloy 800/800H/800HT Stud Bolts** a top choice for secure and reliable fastening in demanding industrial settings.
