Ashraf Nickel Alloys stands out as a top manufacturer and supplier based in Riyadh, Saudi Arabia, specializing in high-quality Titanium Grade 5 Tube Fittings. These fittings are crafted for exceptional strength, durability, and reliable performance, even in the toughest industrial settings. Thanks to their lightweight nature, impressive corrosion resistance, and ability to endure extreme temperatures and harsh conditions, they find their place in critical systems across various sectors, including aerospace, marine, chemical, medical, and power generation. With a commitment to precision manufacturing and strict adherence to international quality standards, Ashraf Nickel Alloys guarantees that each Titanium Grade 5 Tube Fitting delivers consistent performance and long-lasting reliability.
These fittings are made up of about 90% titanium, 6% aluminum, and 4% vanadium, a blend that boosts their strength, toughness, and thermal stability. They boast high tensile and yield strength, remarkable fatigue resistance, and an impressive strength-to-weight ratio. Even under extreme conditions, these fittings maintain their structural integrity and offer excellent resistance to seawater, acids, and industrial chemicals. Their lightweight yet sturdy design, along with biocompatibility and great weldability, makes them ideal for a variety of advanced industrial and medical applications.
| Specifications | ASTM B366 / ASME SB366 |
|---|---|
| Size | 1/16 in. to 2 in. & 2mm to 50 mm. |
| Dimensional Range | 1/16 to 2 inches (imperial); 2 to 50 mm (metric) |
| Working Pressures | Upto 2000 to 6000 PSI |
| Thread Type | NPT – ASME B1.20.1, SAE AS71051 | ISO/BSP Parallel – ISO 228 | ISO/BSP Tapered – ISO 7, BS EN 10226-1 | SAE (Unified) – ASME B1.1 |
| End Connections | NPT, ISO/BP, SAE/MS, AN, weld ends, port connectors, sanitary flanges, tube adapters |

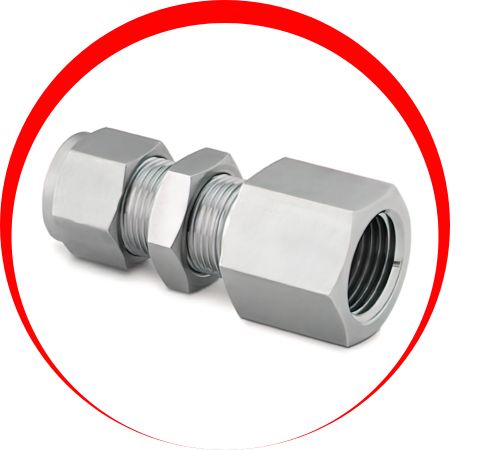

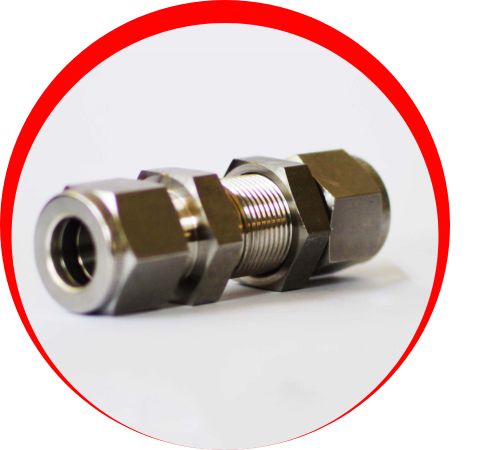

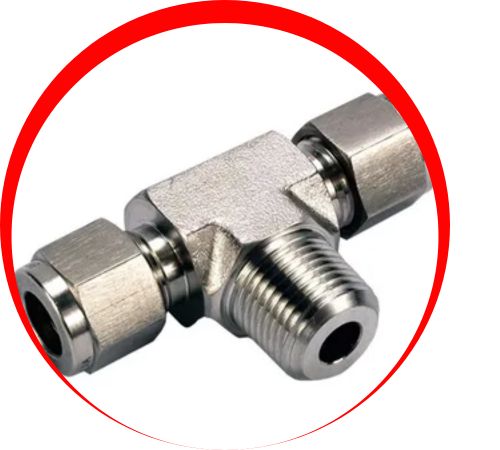

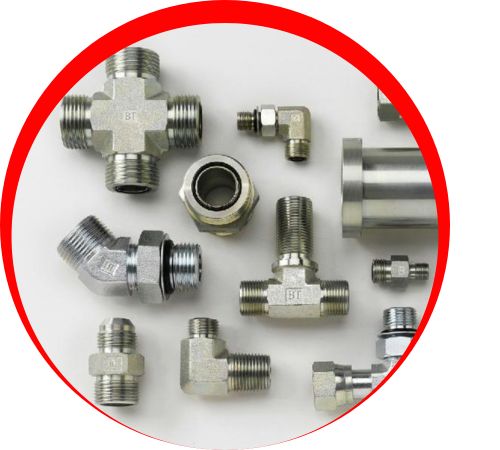

| Types | Tube to Union, Tube to Male, Tube to Female, Instrument Pipe Fittings, Accessories |
| Max Working Pressure | 8MPa | 1200psi Depending on The Tubing Material |
| Working Temperature | -40°C—250°C | -40°F—482°F Depending on The Tubing Material |
| Configurations | Straights, elbows, tees, crosses, caps, plugs, nuts and ferrules Chromatograph and Column End |
| Tube Fitting uses & application |
| Grade | Ti | C | Fe | H | N | O | Al | V |
| Ti Grade5 | 90 min | – | 0.25 max | – | – | 0.2 max | 6 min | 4 min |
| Element | Density | Melting Point | Tensile Strength | Yield Strength (0.2%Offset) | Elongation |
| Titanium Gr. 5 | 4.43 g/cm3 | 1632 °C (2970 °F) | Psi – 138000 , MPa – 950 | Psi – 128000 , MPa – 880 | 14 % |
At Ashraf Nickel Alloys, we take pride in being the largest supplier, exporter, and manufacturer of Titanium Grade 5 Tube Fittings in Riyadh, Saudi Arabia, providing cutting-edge solutions for all your piping needs. Our state-of-the-art production plants are strategically located in the Saudi Arabia, allowing us to maintain a vast inventory of over 16,000 tons of premium-quality materials readily available in stock. We are dedicated to delivering superior products and services, ensuring reliability and excellence for our global clientele.
Contact us to get a quick quote for your requirement.
In the aerospace industry, Titanium Grade 5 Tube Fittings are essential for hydraulic and fuel lines, where both high strength and low weight are crucial. In marine applications, they are utilized in shipbuilding, offshore platforms, and desalination plants due to their resistance to seawater corrosion. The chemical processing sector relies on them for transporting aggressive fluids, while the medical field incorporates them into surgical instruments and implants. Additionally, they are widely used in oil and gas, automotive, and power generation industries. The unique combination of strength, corrosion resistance, and lightweight properties makes Titanium Grade 5 Tube Fittings a must-have for high-performance applications.
